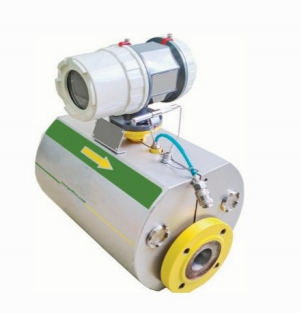

GFA202 Gas Ultrasonic Flow Meter

The GFA202 gas ultrasonic flow meter adopts a dual-channel design, is equipped with an internal lithium battery, and integrates temperature, pressure, and volume correction functions, enabling precise measurement of gas flow. The absence of rotating parts ensures its high robustness and safety, making it suitable for trade settlement metering in natural gas pipelines, industrial and commercial users, and collective units.

· Nominal diameter: DN50 to DN400

· Flow velocity range: 0.15 m/s to 40 m/s

· Resolution: 0.001 m/s

· Accuracy: 1.0 grade (0.5% customized)

· Pressure rating: 1.6 Mpa; 6.3 Mpa; 10Mpa; 16 MPa 25Mpa
